Product Details

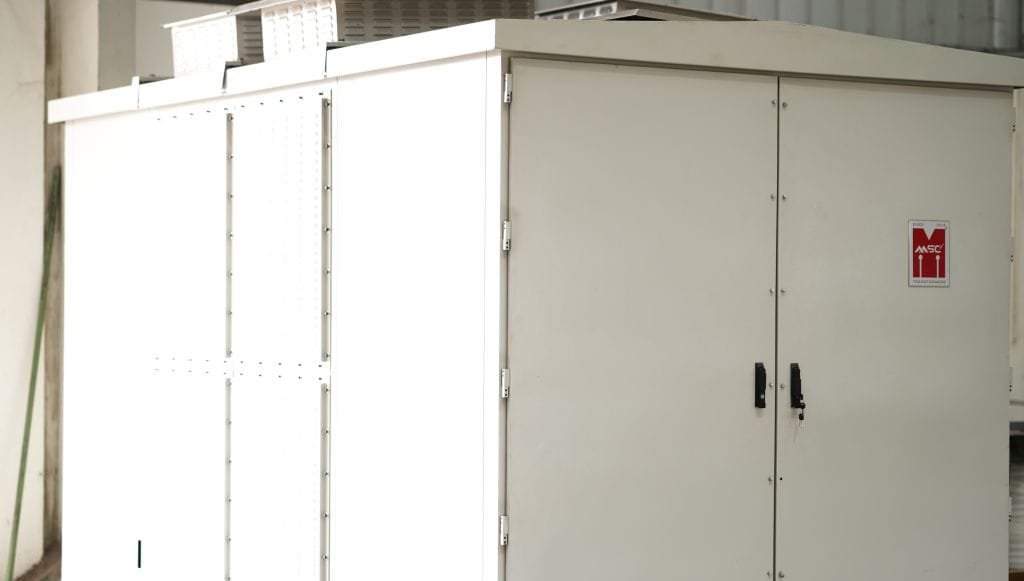

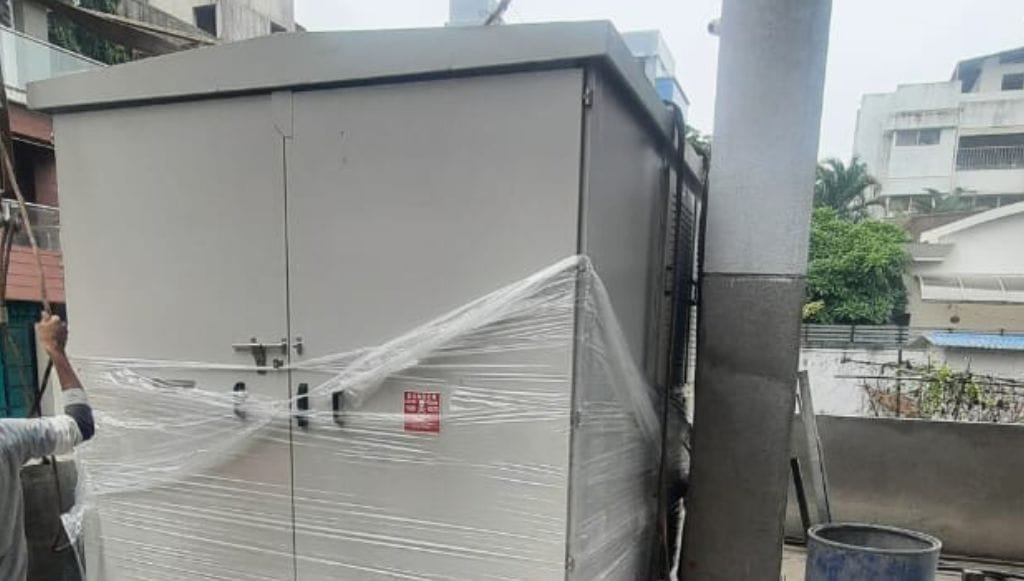

A compact substation transformer is an integrated power solution that combines a transformer, medium-voltage switchgear, low-voltage switchgear, and protective devices in a single, enclosed unit. These substations are widely used in urban areas, industrial plants, and renewable energy applications where space is limited and efficient power distribution is required.

Electrical Specifications

• ❖ Rated Power: up to 2500 kVA
• ❖ Primary Voltage: up to 33 kV
• ❖ Secondary Voltage: As per Requirement
• ❖ Frequency: 50 Hz / 60 Hz
• ❖ Phase Configuration: Three-phase
• ❖ Vector Group: As per Requirement

Advantages

• ❖ Efficient and space-saving power distribution
  Perfect for areas with limited space, such as urban infrastructure.
• ❖ Ideal for urban infrastructure, industrial plants, and renewable energy
  An optimal solution for multiple applications.
• ❖ Integrates transformer, switchgear, and protection systems into a single unit
  Minimizes the need for multiple individual components.
• ❖ Voltage Ratings: Choose based on primary and secondary voltage requirements
• ❖ Power Capacity: Ensure the kVA/MVA rating matches the load demand
• ❖ Cooling System:
  • ❖ Oil-Cooled: Better heat dissipation for high-load applications
  • ❖ Dry-Type: Suitable for indoor and environmentally sensitive areas

Compact substation transformers ensure efficient, space-saving power distribution. Their integrated design, easy installation, and safety features make them perfect for urban infrastructure, industrial plants, and renewable energy. Choosing the right unit based on voltage, power capacity, and cooling ensures reliable and long-lasting performance.
